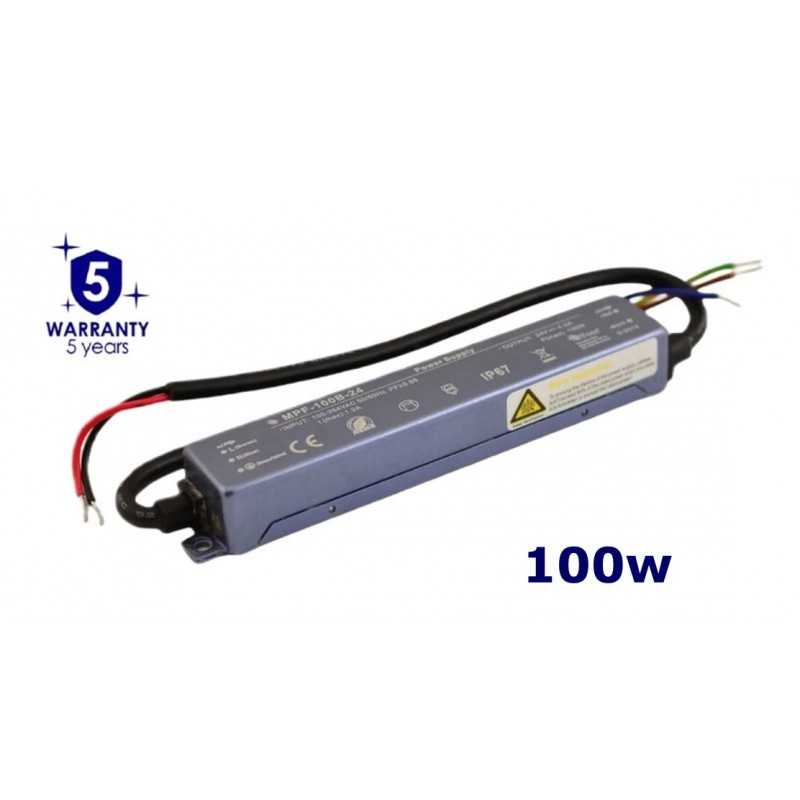

Constant Voltage Power Supply PFC IP67 24V 100W

• IP67 designed for indoor and outdoor use
• Protections: Short circuit, Overload, Over temperature
• Cooling by free air convection
• Built-in active PFC function, PF > 0.96
• Warranty 5 years
• Dimensions: 150mm - 26mm - 20mm
• Weight: 0.180kg

Specification

Symbol MPF-100B-24
EAN13 5901289758635
ETIM CLASS DC-power supply
Rated supply voltage [V] 100-264V AC 50/60Hz
Power output [W] 100
Output voltage 24
Max. output current [A] 4.17
Degree of protection IP67
Eciency [%] 93
Housing Encapsulated
Protection class I
Suitable for outdoor use yes
Length [mm] 150
Width [mm] 26
Height/depth [mm] 20
Weight [kg] 0.18
