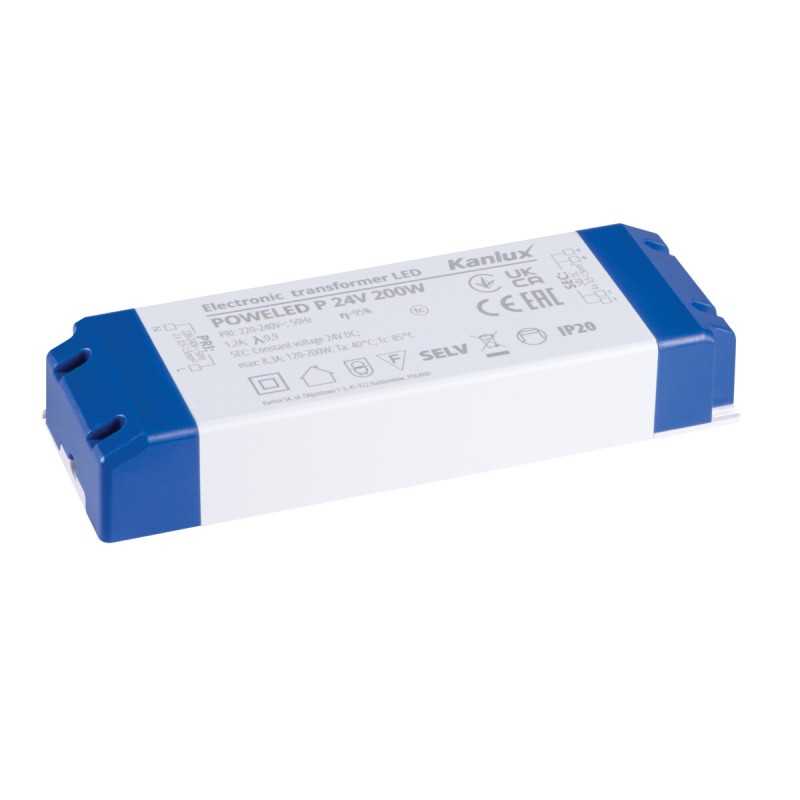

Kanlux POWELED P 24 V 200 W — Constant‑Voltage Power Supply (CV)

Additional Notes

• The power supply is not intended to operate without a load (i.e., it must be connected to an LED strip or similar load).

Overview

• Model: Kanlux POWELED, an electronic constant‑voltage power supply used to power LED strip lights. Before connecting, verify the power supply voltage and strip voltage (12 V–24 V).

General Specifications

• Color: white

• Usage location: indoor

• Mounting on normally flammable surfaces: yes

• Dimensions (mm):

  • Length: 205

  • Width: 71

  • Height: 35

• Protection class: Class II (double insulated, no earth required)

• Material: plastic

• Ambient operating temperature: 5 °C to 25 °C

Technical Data

• Input voltage (PRI): 220–240 V AC

• Frequency: 50 Hz

• Maximum output power: 120–200 W

• Output voltage (SEC): 24 V DC

• Maximum output current: 8,300 mA (8.3 A)

• Short-circuit protection: yes

• Max ambient temperature (Ta): 40 °C

• Max case temperature (Tc): 85 °C

• IP protection class: IP20 (protection against solid objects >12 mm, no protection against liquids)

• Connection type: terminal block

• Wire cross-section range: 0.5–1.5 mm²

Logistics & Packaging

• Unit quantity: piece

• Packaging quantity: 20 per outer carton; inner unit also 1 piece—20 total.

• Net weight per unit: 754 g

• Gross weight per unit packaging: 816.5 g

• Packaging dimensions (unit):

  • Length: 8 cm

  • Width: 21.5 cm

  • Height: 4.5 cm

• Carton dimensions:

  • Length: 34 cm

  • Width: 23.5 cm

  • Height: 24.5 cm

  • Carton volume: 0.019576 m³

• Total carton weight: 16.33 kg

Additional Notes

• The power supply is not intended to operate without a load (i.e., it must be connected to an LED strip or similar load).
